These instructions assume your modules are initialised and have registered their components and communication interfaces. The WinGate Module Wizard can do this for you.

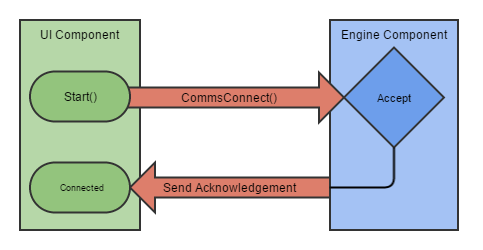

Here is a basic overview of the process of establishing a connection between UI and Engine components.

When your UI component is ready to start, the UI Host (WinGate Management Console) calls your ComponentEntry.Start function. In this function you call CommsConnect to initiate a connection to an Engine-side component. e.g.

int Start(ComponentEntry* entry)
{
	CommsConnect(entry, MY_COMPONENT_ENGINE_UUID); /* Asks the framework to attempt a comms connection to component with UUID MY_COMPONENT_ENGINE_UUID */
	return 0;
}

When the Engine receives this request it looks for a registered ComponentCommunicationsInterface interface for the specified UUID (MY_COMPONENT_ENGINE_UUID). If found, it calls the ComponentCommunicationsInterface.CommsAccept function for that component. The CommsAccept function is where your Engine component can decide whether to accept the connection or not.

bool Accept(void* connection, const GUID &sourceUuid)
{
	if(!IsEqualGUID(sourceUuid, MY_COMPONENT_UI_UUID))
 	{
		return false;
	}
/* Save the connection for later. You should serialise access to the connections container because multiple WMCs might be attempting to connect at the same time. */
	connections[sourceUuid] = connection;
	return true;
}

 Notice in the example code above that we have the line

connections[sourceUuid] = connection;

This is an example of storing the connection associated with a connection peer. The reason we use a container and not a single connection is because an engine component might have more than one UI component connected to it, typically when there are multiple WinGate Management Consoles connected to the same WinGate engine. By saving these connections you can send data to multiple WMCs at the same time. This is typically how configuration changes are propogated. see Propagating configuration changes

If your Engine module accepts the connection (By returning true) then WinGate informs the WMC which then calls your module's ConnectedComponentCommunicationsInterface.CommsConnected function. Your UI module then typically saves the connection somewhere for use later.

Once ConnectedComponentCommunicationsInterface.CommsConnected has been processed, both modules are now able to send messages between each other with CommsSend.

At present a UI module can only ever have one incoming connection but you should be prepared to handle more than one for future expansion.
